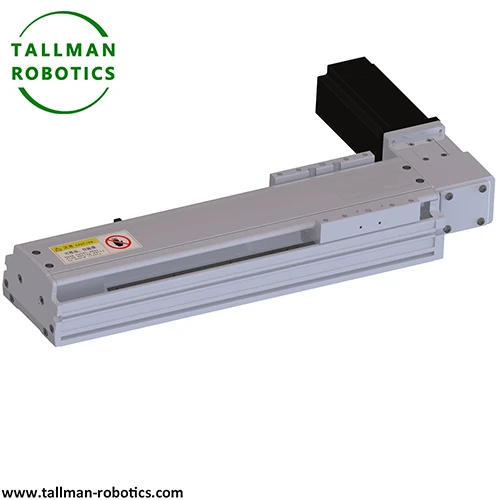

Nako Belt Linear Actuator

Timing Belt Linear Actuator ke karolo ea mantlha e fetolang motsamao oa koloi hore e be phallo e le 'ngoe ka ho kopanya phetisetso ea mabanta a synchronous le liporo tsa tataiso tse nepahetseng. Mosebetsi oa eona oa mantlha ke ho fihlela taolo e tsamaeang ka lebelo le holimo, ka nepo e phahameng, le litšenyehelo tse tlase, 'me e sebelisoa haholo maemong a boiketsetso a hlokang boima bo bobebe ho isa bohareng, maeto a malelele, le litlhoko tse nepahetseng tse itekanetseng. Ka mohlala, moleng oa tlhahiso ea elektronike oa 3C, o ka khanna letsoho la robotiki ho tlatsa chip mounting; Sesetemeng ea ho hlopha, khanna mohala oa ho tsamaisa liphutheloana ho fihlella-phallo e phahameng.

Molao-motheo oa ho sebetsaeaNako Belt Linear Actuator

Mokhoa oa ho khanna lebanta oa synchronous

Boemo ba leino bo karolong e ka hare ea lebanta la synchronous le entsoe ka mokhoa o nepahetseng le li-grooves tsa lebili la ho khanna le lebili le khannoang. Ha motlakase o khanna lebili la ho khanna ho potoloha, lebanta la synchronous le khanna lebili le khannoang ho potoloha synchronously ka phello ea meshing, 'me ho sisinyeha ha lebanta ho fetisetsoa mojaro ka slider. Moralo ona o bōpehileng joaloka leino o qoba ho thella ka botlalo, 'me ho nepahala ha maemo ho ka fihla ± 0.05mm, ho feta phetiso e tloaelehileng ea lebanta le bataletseng. Ka mohlala, mochini oa Dingge synchronous lebanta o sebelisa lebanta la tšepe la polyurethane synchronous, le ka bolokang phetiso e tsitsitseng nakong ea ts'ebetso e phahameng-.

Tataiso ea tataiso ea terene le tšehetso

Litataiso tsa mela (joalo ka litataiso tsa libolo kapa litataiso tsa lirolara) li fana ka tšehetso e thata bakeng sa selaete, ho fokotsa ho se tsitse le ho netefatsa motsamao oa mola. Ka mohlala, TallMan Robotics linear module e sebelisa motsoako oa liprofaele tsa aluminium alloy le liporo tse phahameng-tse nepahetseng tsa tataiso, tse ka bolokang ho otloloha ha Ka tlase ho kapa ho lekana le 0.1mm/m ka lebelo la 2m/s.

Likarolo tsa bohlokoa tsa sebopehoeaNako Belt Linear Actuator

Sistimi ea ho khanna

Lebanta la Synchronous: le entsoe ka polyurethane matrix le terata ea tšepe (kapa fiber ea aramid), le roala-e hananang le ho otlolla, 'me lesela le letala la polyamide le kenngoe bokaholimong ba leino ho fokotsa lerata.

Pulley: Lebili la ho khanna le hokahane le enjene, 'me lebili le khannoang le tsitsitse ho fihlela qetellong ea seporo sa tataiso. Meralo e meng e kopanya enjene ka har'a selaete ho boloka sebaka.

Tsamaiso ea Tataiso

Litataiso tsa mela: Mefuta e tloaelehileng e kenyelletsa litataiso tsa bolo (ho nepahala ho phahameng) le litataiso tsa lirolara (mojaro o phahameng), tse sebetsang 'moho le li-slider ho fihlela motsamao o tlase oa likhohlano. Mohlala, mojule oa lebanta la reverse drive o na le moralo o habeli oa seporo, o eketsang boima ba mojaro ho fihla ho 85kg.

Sliding block: E tsepamisitsoe ho lebanta la synchronous, e tsamaisang meroalo e ka ntle (joalo ka lisebelisoa tsa ho lemoha kapa matsoho a robotiki), li-sliding blocks li kopantsoe le lerole-maburu a thibelang ho sebetsa ho ikamahanya le maemo a lerōle.

Likarolo tse thusang

Sesebediswa sa Tensioning: Maqhama a lebanta a ikamahanya le maemo ka mochini oa spring kapa seboko ho thibela ho fokotseha ho nepahetseng ka lebaka la ho hlepha.

Limit switch: e kentsoe lintlheng tse peli tsa seporo sa tataiso ho fokotsa sekhahla sa sekhahla sa slide le ho qoba tšenyo ea lisebelisoa ka lebaka la ho fetella.

O amohelehile ho shebella merero e meng kapa ho etela laeborari ea rona ea livideo ka Youtube: https://www.youtube.com/@tallmanrobotics

Mona, re hlahisa ronaNako Belt Linear Actuators, ka data ka tsela e latelang:

Nako ea Belt Linear Module bakeng sa General Environment TM-B-CM

Timing Belt Linear Module for Dust{{0}proof Environment TM-B-CR

Organ Cover e thibelang metsi hore e be nako ea Timing Belt Linear Module TM-BF

Europe e thibelang lerole ea Timing Belt Module TM-EB

Linyeoe tse tloaelehileng tsa ts'ebelisoeaNako Belt Linear Actuator

Indasteri ea 3C ea Electronics le Semiconductor

Thepa ea ho paka ea Chip: The actuator ea lebanta la synchronous e khanna hlooho ea solder ho tlatsa khokahanyo ea terata ka lebelo la 500mm/s, ka tlhokahalo e nepahetseng ea ± 0.02mm.

Sistimi ea tlhahlobo ea PCB: Khanna li-optical probes ho skena ka tatellano holim'a boto ea potoloho, 'me u sebelise theknoloji ea ho lemoha pono ho bona mefokolo e kopaneng ea solder.

Logistics le Warehouse Automation

Mohala oa ho hlopha ka lebelo le phahameng: Setsing sa phano e hlakileng, lipakete tsa li-synchronous lebanta li tsamaisa liphutheloana ka lebelo la 4m / s, li kopantsoe le li-scanner ho fihlela katleho ea ho hlophisa likotoana tse 200 ka motsotso.

Lisaense tsa Bongaka le Bophelo

Hematology analyzer: Khanna terei ea sampole ho ea sebakeng sa ho lemoha ka lebelo la 0.5m/s, ho netefatsa ts'ebetso e bonolo ho qoba ho tsukutla sampole.

Roboto ea ho buoa: Ka opereishene e hlaselang hanyane, mochini o tsamaisang lebanta la synchronous o khanna letsoho la robotiki ho phethela ho itšeha ka mokhoa o hlakileng oa lerata ka lebelo le ka tlase ho 50dB.

Tlhahiso e ncha ea matla le photovoltaic

Sesebediswa sa ho seha sa silicon: The synchronous lebanta actuator e khanna lehare la ho itšeha ka lebelo la 2m/s, le kopantsoe le terata ea daemane ho fihlela ho seha ka nepo-liphaphatha tsa silicon, ka phoso ea botenya ea Tlase ho kapa e lekanang le ± 0.03mm.

Mohala o kopanyang betri: Khanna mochine o fetisang poleiti ho qetela ho phethola lisele tsa betri, ka lebelo la ho fihla ho 300mm/s, ho fihlela litlhoko tsa-ka boholo ba tlhahiso.

Melemo le mefokoloeaNako Belt Linear Actuator

Melemo ea mantlha

Lebelo le phahameng le leqeba le lelelele: Lebelo le ka fihla ho 5m / s, 'me stroke e ka etsoa ho ea ho limithara tse 10 (joaloka mela ea lipalangoang tsa thepa), ho feta moeli o boima oa lebelo la li-screws tsa bolo.

Katleho ea litšenyehelo: Ha ho bapisoa le li-motors kapa li-screws tsa bolo, litšenyehelo li fokotsehile ka 30% -50%, 'me tlhokomelo e hloka feela ho hlahlojoa khafetsa ha tsitsipano ea lebanta.

Lerata le bohloeki bo tlase: Lebanta la synchronous le na le lerata le ka tlase ho 60dB 'me ha le hloke mafura, ho etsa hore le tšoanelehe bakeng sa lithupelo tsa mahala{{1}tse kang libaka tsa ho paka ka semiconductor).

Mefokolo e ka sehloohong

Bophahamo ba moroalo: Tsela e tšekaletseng hangata e loketse meroalo e ka tlase ho 45kg, 'me maemo a boima a hloka hore ho sebelisoe lirolara kapa li-screw drive.

Environmental adaptability: High temperature (>80℃) kapa maemo a mongobo o phahameng a ka potlakisa botsofali ba lebanta, bo hlokang tšebeliso ea lisebelisoa tse khethehileng.

Ho senyeha ho nepahetseng ha nako e telele: Deformation ea ho otlolla lebanta (hoo e ka bang 0.02%) e ka lebisa ho fokotseha ho pheta-pheta ho nepahala ha boemo, e hlokang ho lekanyetsoa hang ka selemo.

Litlhahiso tsa khetho ea indasterieaNako Belt Linear Actuator

Boemo bo nepahetseng bo phahameng: Khetha lebanta la tšepe la mantlha la synchronous (joalo ka mojule oa Dingge), 'me u sebelise mochini oa servo ho fihlela boemo bo nepahetseng ba ± 0.05mm, bo loketseng ho kenya chip.

Lebelo le phahameng{0}}lebaka la sebaka se selelele: ho sebelisoa lebanta la aramid fiber synchronous, le lebelo la ho fihla ho 5m/s, le loketseng ho hlopha lintho.

Tikoloho e hloekileng: Limojule tse koaletsoeng ka botlalo tsa mabanta (joalo ka TallMan Robotics series) tse nang le lerole{{0}reite ea bopaki ba IP65, e loketseng lisebelisoa tsa tlhahlobo ea bongaka.

Timing Belt Linear Actuator e se e le khetho ea mantlha lefapheng la li-automation ka lebaka la lebelo le holimo, litšenyehelo tse tlase le tlhokomelo e bonolo. Taelo ea eona ea ho iphetola ha lintho ea thekenoloji e kenyelletsa kopanyo ea modular (joalo ka li-multi axis combination gantry modules) le tlhahlobo e bohlale (e nang le lisensara- tse hahelletsoeng ka har'a{2}}maikutlo a 'nete a nako ea likhohlano tsa mabanta). Nakong e tlang, ka tšebeliso ea lisebelisoa tse ncha tse kang carbon fiber reinforced synchronous belts, ts'ebetso ea bona{4}}e phahameng haholo ea ho etsa thepa e tla tsoela pele.
